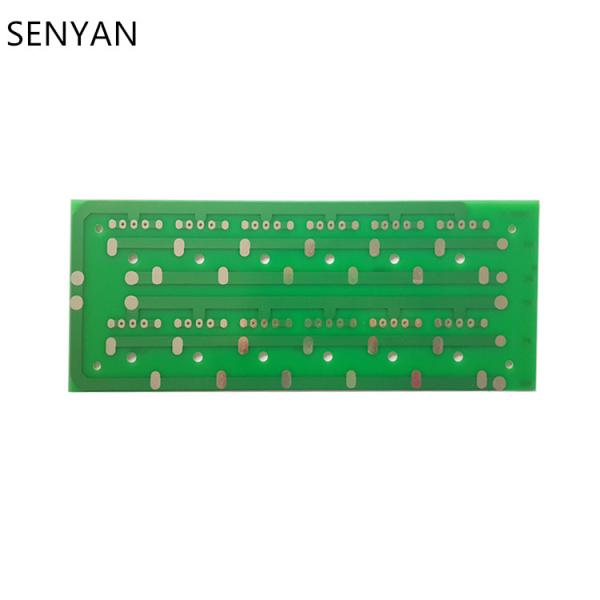

    ISO14001 FR4 1 Layer PCB ISO13485 TG130 TG150 TG170

    Ask Lasest Price
    Brand Name : SenYan
    Model Number : 1 layer pcb
    Certification : ISO14001,ISO13485,ISO9001,IATF16949
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100000pcs
    Delivery Time : 1-30days
    • Product Details
    • Company Profile

    ISO14001 FR4 1 Layer PCB ISO13485 TG130 TG150 TG170

    1 layer pcb Reputable FR4 material EMS ODM OEM PCB manufacturer China factory PCBA Assembly with ISO14001,ISO13485

    The competitive advantage of product line:

    Shenzhen SenYan Circuit Co.,Ltd.(Shenzhen) is one of Chinese leading electronic O E M contract provider services including PCB & PCB assembly. With many years experience in PCB & PCBA developing and exporting.

    SENYAN offers pcb productiong services from 1-20 layer rigid circuit board,

    1-4 layer flexible pcb board. 1-2layer aluminum PCB

    The materials includes standard FR4,FR1,CEM-1,

    CEM-3, hight TG, Aluminum , FPC,polyimide, Teflon and so on.

    PRODUCT INFORMATION

    NoItems (PCB)Capaility
    1LaminatesAluminium Base, FR4 (TG130,TG150,TG170), Copper Base, FR1, CEM1, CEM3, FPC(Flexible Circuit), Ceramic Base, Rogers .and etc.
    2Layers1-16 layers
    3Max Size457 x 609mm
    4Min. Board Thickness1-2 layer = 0.20mm, 4-6 layer = 0.60mm, 8 layer = 0.80mm
    5Finished CopperHoz to 4 oz copper
    6Min. Line/Spacing4mil/4mil
    7Min. Finished Hole8mil (0.20mm)
    8Hole Wall Copper20-25um
    9Min. Solder Mask Dam/Bridge4 mil (0.10mm)
    10Max. Aspec Ratio8 : 1
    11Tolerance of Hole Position+/-2mil
    12Tolerance of OutlinesNormal: +/-5mil ; Special: +/-4mil
    13Tolerance of TracksNormal: +/-20%
    14Tolerance of PTHNormal: +/-3mil , Special: +/-2mil
    15Tolerance of NPTH+/-2mil
    16Impedance Control+/-10%
    17Twist and Bow<=0.75%
    18Surface FinishingHAL, LF HAL, ENIG, Immersion Gold, OSP, Immersion Tin, Immersion Silver, Gold Flash, Gold Finger.

    PCB, UL Rohs PCB Design 94V0 Antenna PCB

    SUPPLY CHAIN MANAGEMENT


    "Supply Chains Compete, not Companies"

    In the fast moving and dynamic business environment in which we operate, effective and efficient supply chain management can have a significant part to play in the overall success of a business.

    Senyan is commited to adding value to our customers and to that end works closely with both our suipplier partners and customers to form customer focused supply chain solutions which add value to our end customers. At Senyanwe believe that the supply chain is a strategic asset and that thorugh a collaborative approach we can deliver agile and value adding supply chain solution.


    With our customrs we :

    * analyze demand patterns, sales forecast and order requirements.

    * propose and build inventory models which provide, flexibility, delivery on time and risk management.

    * portfolip manage thier product range to provide best fit solutions for lead time, quality, technology, price.

    * activity manage demand based on forecast data, MRP order book or traditional PO based demand.

    * manage delivery models including SMI/VMI, STS, Consignment, Buffer or order based.


    With our Asian based supply chain team we:

    * continuous assess the supply base to refresh and challenge our portfolio of suppliers.

    * assess potential new and current suppliers against our strict and robust supplier selectin ands audit process.

    * manage our chosen supply partner via an active Supplier Relaltionship Management Program.

    * consolidate freight form multiple suppliers, working with our freight partners to offer multi-modal solution to give best value supply chain solution.
