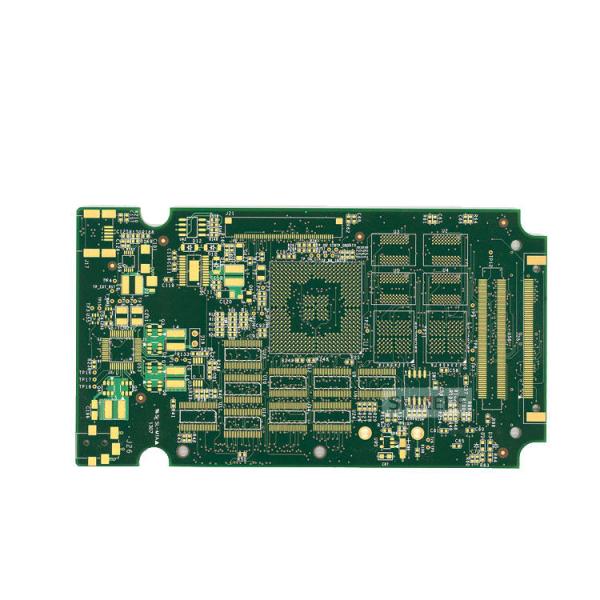

    OEM GPS Tracker PCB Board Assembly CEM1 CEM3 ISO9001

    Ask Lasest Price
    Brand Name : SenYan
    Model Number : PCB Assembly
    Certification : ISO14001,ISO13485,ISO9001,IATF16949
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100000pcs
    Delivery Time : 1-30days
    • Product Details
    • Company Profile

    OEM GPS Tracker PCB Board Assembly CEM1 CEM3 ISO9001

    Pcba Gps Tracker Pcb Assembly Oem Manufacturer Shenzhen Circuit Board Printing Design And Gerber Bom File For Pcb

    We help
    Your Troubles
    Our Strategy
    Lack of engineering experience
    Various unexpected problems, causing the project to fail
    Rich engineering experience: Bom Engineer/ Product Engineer/ Technical Engineer /Purchasing Engineer.Eliminate Problems and pitfalls at the design stage
    Coordinating multiple suppliers
    Insufficient time and energy
    PCB Assembly and welding factory, Component procurement team,Function Test , Finished Product Assembly. Provide one-stop service, save time and worry
    Product quality control
    High hardware trial and error cost
    Rigorous process and strong strength
    We have established a standardized and rigorous process and system to effectively reduce quality problems
    Traders do not have physical factories
    The quality is not guaranteed, Documents easy to disclose
    Own teams and factory, the delivery time is more controllable
    Hard delivery guarantee
    The market can't wait
    Complete Organizational Structure: Project Department, Engineering Department, Purchasing Department, Quality Department,
    Production Department, Etc.

    Welcome to Senyan

    We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB. We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders.We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month.We deeply believe that our good service and experience will completely meet you need. Integrity, value and innovation are the forces that drive our success. We are the smart choice for you and the trusted source at the center of your deal. Welcome the win-win situation together.


    1. specifications

    1. We offer One-shop PCAB/PCB manufacturing service
    2.10 year of turnkey ODM/OEM experience
    3. We can provide F4B,F4BK, Teconic,Arlon,Rogers materia PCB
    4. Timely customizations PCBs and PCBAs
    2. Detailed Terms for Pcb Assembly
    Technical requirement:

    1) Professional Surface-mounting and Through-hole soldering Technolog

    2) Various sizes like 1206,0805,0603 components SMT technology

    3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

    4) PCB Assembly With UL,CE,FCC,Rohs Approval

    5) Nitrogen gas reflow soldering technology for SMT.

    6) High Standard SMT&Solder Assembly Line

    7) High density interconnected board placement technology capacity


    1MaterialFR4, (High Tg FR4, General Tg FR4, Middle Tg FR4), Lead-Free Solder Sheet, Halogen Free FR4, Ceramic Filling Material, PI Material, BT Material, PPO, PPE etc.
    2Board thicknessMass production: 394mil(10mm) Samples: 17.5mm
    3Surface finishHASL, OSP, Immersion Silver, Immersion Gold, ENIG, ENEPIG, Immersion Tin
    4PCB Max panel size1190*350mm/450*450mm
    5LayerSamples: 1-64 Layers, Mass production: 2-58 Layers, Flexible PCB: 1-12 Layers
    6Min.drilled hole sizeMachine Drilling 8mil(0.20mm), Laser Drilling 3mil(0.075mm)
    7PCBA QCX-ray, AOI Test, Functional Test
    8SpecialtyGateway, Medical, Security, GPS tracker, Consumer, Automotive electronics
    9Our servicePCB, Turnkey PCBA, PCB Clone, Housing, PCB Assembly, Component sourcing, PCB development and design, PCB manufacturing from 1 to 64 layers
    10SanforizedBuried via, Blind via, Mixed Pressure, Embedded Resistance, Embedded Capacitance, Local Mixed Pressure, Local High Density, Back drill, impedance control.
    11CertificateRoHS/ISO9001/TS16949/UL/ISO14001/ISO13485

    OEM GPS Tracker PCB Board Assembly CEM1 CEM3 ISO9001

    OEM GPS Tracker PCB Board Assembly CEM1 CEM3 ISO9001
    SMT Manufacturing Capability
    SMT Manufacturing Capability
    Item
    Manufacturing Capability in process
    Manufacturing Method
    Production size(Min/Max)
    50×50mm / 500×500mm
    Production board thickness
    0.2 ~ 4mm
    Printing solder paste
    Support method
    Magnetism fixture, vacuo platform
    Clamping method
    Sticking up by vacuo, clamping on both sides ,flexible clamping with sheet, flexible clamping with thick board
    Cleaning Method of printing solder paste
    Dry method+ wetting method+ Vacuo method
    Accuracy of printing
    ±0.025mm
    SPI
    Repeated accuracy of volume
    <1% at 3σ
    Mounting component
    Components size
    0603(Option) L75mm Connector
    Pitch
    0.15mm
    Repeated accuracy
    ±0.01mm
    AOI
    FOV size
    61×45mm
    Test speed
    9150mm²/Sec
    3D X-ray
    Shootingangle
    0-45
    Rigid RPCB Manufacturing Capability
    Rigid RPCB Manufacturing Capability
    Item
    RPCB
    HDI
    minimum linewidth/linespacing
    3MIL/3MIL(0.075mm)
    2MIL/2MIL(0.05MM)
    minimum hole diameter
    6MIL(0.15MM)
    6MIL(0.15MM)
    minimum solder resist opening (single-side)
    1.5MIL(0.0375MM)
    1.2MIL(0.03MM)
    minimum solder resist bridge
    3MIL(0.075MM)
    2.2MIL(0.055MM)
    maximum aspect Ratio (thickness/hole diameter)
    10:1
    8:1
    impedance control accuracy
    +/-8%
    +/-8%
    finished thickness
    0.3-3.2MM
    0.2-3.2MM
    maximum board size
    630MM*620MM
    620MM*544MM
    maximum finished copper thickness
    6OZ(210UM)
    2OZ(70UM)
    minimum board thickness
    6MIL(0.15MM)
    3MIL(0.076MM)
    maximum layer
    14层
    12层
    Surface treatment
    HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag
    Immersion Gold,OSP,selectiveimmersion gold,
    carbon print
    Min/max laser hole size
    /
    3MIL / 9.8MIL
    laser hole size tolerance
    /
    10%
    OEM GPS Tracker PCB Board Assembly CEM1 CEM3 ISO9001
    OEM GPS Tracker PCB Board Assembly CEM1 CEM3 ISO9001

    FAQ

    Q1.What is needed for PCB PCBA quotation?
    A: PCB: Quantity, Gerber file and Fabrication requirements(material,surface finish treatment, copper thickness,board thickness ,...)
    PCBA: BOM list, Standard ,Function Testing Methods.

    Q2. MOQ?
    A: There is no MOQ in Senyan.We are able to handle Small as well as large volume production with flexibility.

    Q3.Shipping cost?
    A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

    Q4.Popular field?
    Smart Home; Medical Products; Smart Wearable ; Industrial Control ,IOT etc.
