Shenzhen Senyan Circuit Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | SenYan |
| Model Number : | FR4 PCB |
| Certification : | ISO14001,ISO13485,ISO9001,IATF16949 |
| Price : | Negotiate |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 100000pcs |
| Delivery Time : | 1-30days |
We are able to provide you best electronics services.
PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )
FPC,PCB Copy Service.
PCB Assembly Service. (SMT, BGA, DIP)
IC program with HEX file.
PCBA Housing assembly serivce.
PCBA Final Functional Testing.
PCBA Copy Service.
Electronic Components Purchasing & BOM List Purchasing Services.
PCB SMT Stencil. (Laser cut & Etching)
Cable assembly
Your Troubles | Our Strategy | ||
Lack of engineering experience Various unexpected problems, causing the project to fail | Rich engineering experience: Bom Engineer/ Product Engineer/
Technical Engineer /Purchasing Engineer.Eliminate Problems and
pitfalls at the design stage | ||
Coordinating multiple suppliers Insufficient time and energy | PCB Assembly and welding factory, Component procurement
team,Function Test , Finished Product Assembly. Provide one-stop
service, save time and worry | ||
Product quality control High hardware trial and error cost | Rigorous process and strong strength We have established a standardized and rigorous process and system
to effectively reduce quality problems | ||
Traders do not have physical factories The quality is not guaranteed, Documents easy to disclose | Own teams and factory, the delivery time is more controllable | ||
Hard delivery guarantee The market can't wait | Complete Organizational Structure: Project Department, Engineering
Department, Purchasing Department, Quality Department, Production Department, Etc. |
Why Choose Us
1. Fast response;
2. Lower cost;
3. Two-year guarantee.
With more than 10-year EMS service experience, we have established good businedd relationship with components manufacturers, and distributors. As we are sourcing these components together, which will benefit to get a good price from manufacturers.
The raw material in low price makes your own products more competitive in your market, in the meantime you can get 2 years guarantee with no worries from us; That is why we can keep good quality and competitive prices for global valued customers.
Senyan has the capability to manufacture PCB ranging from basic single sided PCB boards up to 40 layer Multi-layer PCB, and provide one stop turnkey PCB services, including PCB manufacturing, PCB assembling, PCBA components sourcing and PCBA function testing.
The superior PCB service we offer our customers is the key to our success. Our mission has remained the same since we started business in 2006: to provide high quality, technically advanced PCB within the customer’s timescales. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements - from front end engineering through to in time deliveries.

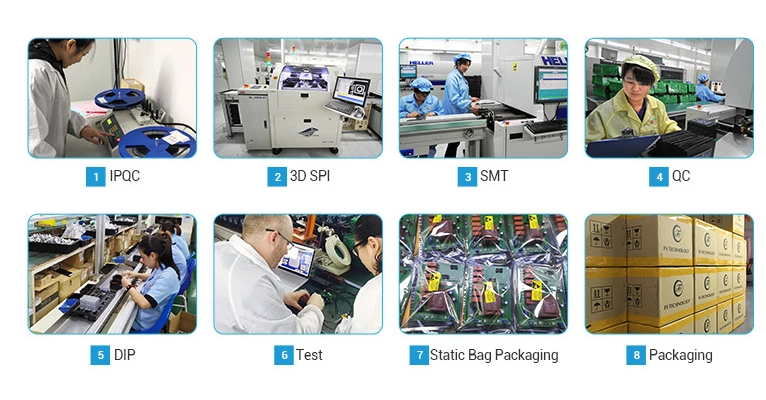

Factory equipment
Senyan has invested in the best equipment, environment and staff training. We have a production capability for standard and HDI, Rigid, RF and high frequency PCBs, together with through hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.
Partners
Senyan has over 10 years experience on electronics components purchasing area. 15 procurement engineers all have at least 5 years experience of components sourcing. We purchase components both from mainland China and overseas countries. Senyan fast turnaround service combined with enhanced parts procurement system will cater to the customers who require both small volume and large volume production demands
Certificate
Senyan precision Electronics Quality management is with the adoption of 5S, Lean Manufacturing and Six Sigma quality systems. Products inspection is strictly conducted in compliance with internationally recognized workmanship standards (IPC-600G classⅡand IPC-6012B classⅡstandard). We are ISO 9001 registered and currently strive for ISO14000 certification.
SMT Manufacturing Capability | |||
Item | Manufacturing Capability in process | Manufacturing Method | |
Production size(Min/Max) | 50×50mm / 500×500mm | ||
Production board thickness | 0.2 ～ 4mm | ||
Printing solder paste | Support method | Magnetism fixture, vacuo platform | |
Clamping method | Sticking up by vacuo, clamping on both sides ,flexible clamping
with sheet, flexible clamping with thick board | ||
Cleaning Method of printing solder paste | Dry method+ wetting method+ Vacuo method | ||
Accuracy of printing | ±0.025mm | ||
SPI | Repeated accuracy of volume | <1% at 3σ | |
Mounting component | Components size | 0603(Option) L75mm Connector | |
Pitch | 0.15mm | ||
Repeated accuracy | ±0.01mm | ||
AOI | FOV size | 61×45mm | |
Test speed | 9150mm²/Sec | ||
3D X-ray | Shootingangle | 0-45 | |
Rigid RPCB Manufacturing Capability | ||
Item | RPCB | HDI |
minimum linewidth/linespacing | 3MIL/3MIL(0.075mm) | 2MIL/2MIL(0.05MM) |
minimum hole diameter | 6MIL(0.15MM) | 6MIL(0.15MM) |
minimum solder resist opening (single-side) | 1.5MIL(0.0375MM) | 1.2MIL(0.03MM) |
minimum solder resist bridge | 3MIL(0.075MM) | 2.2MIL(0.055MM) |
maximum aspect Ratio (thickness/hole diameter) | 10:1 | 8:1 |
impedance control accuracy | +/-8% | +/-8% |
finished thickness | 0.3-3.2MM | 0.2-3.2MM |
maximum board size | 630MM*620MM | 620MM*544MM |
maximum finished copper thickness | 6OZ(210UM) | 2OZ(70UM) |
minimum board thickness | 6MIL(0.15MM) | 3MIL(0.076MM) |
maximum layer | 14层 | 12层 |
Surface treatment | HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag | Immersion Gold,OSP,selectiveimmersion gold, carbon print |
Min/max laser hole size | / | 3MIL / 9.8MIL |
laser hole size tolerance | / | 10% |
.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except
weekend and holidays).
-If you are very urgent to get the price, please email us or
contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes. Please feel free to contact us.
3. What is your lead time?
-It depends on the order quantity and the season you place the
order.
-Usually, we can ship within 7-15 days for small quantity, and
about 30 days for large quantity.
4. What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5. What is the shipping method?
-It could be shipped by sea,by air or by
express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6. How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our
customers benefit ;
-2. We respect every customer as our friend and we sincerely do
business and make friends with them,no matter where they come from.
|
|
